UniCIM 3D Conformal Coating Inspection & Measurement
Inspects coating areas of conformal coating and measures coating thicknesses
Feature
- Highly reliable 3D Conformal Coating Inspection & Measurement
- Inspects high-speed/high-precision coating area with adoption of an optical system and spectrometer optimized for inspection
- Highly reliable 3D coating thickness measurement based on OCT technology
- Application of high-speed algorithm for light reflection data processing
- Inspects high-speed/high-precision coating area with adoption of an optical system and spectrometer optimized for inspection
- Highly reliable 3D coating thickness measurement based on OCT technology
- Application of high-speed algorithm for light reflection data processing
Inspection of conformal coating areas

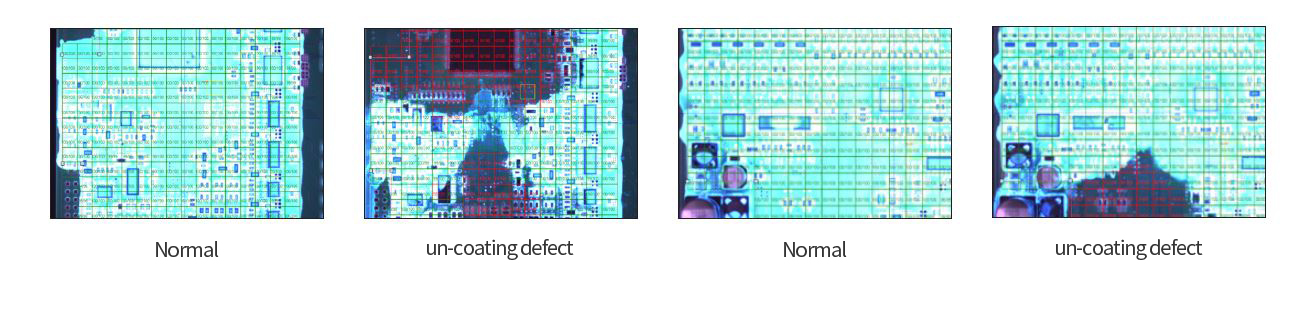

- Detects defects that occur during conformal coating processing, e.g. uncoating, insufficient coating, and bubbles, and also whether coating is in the non-coated area
Conformal coating thickness measurement

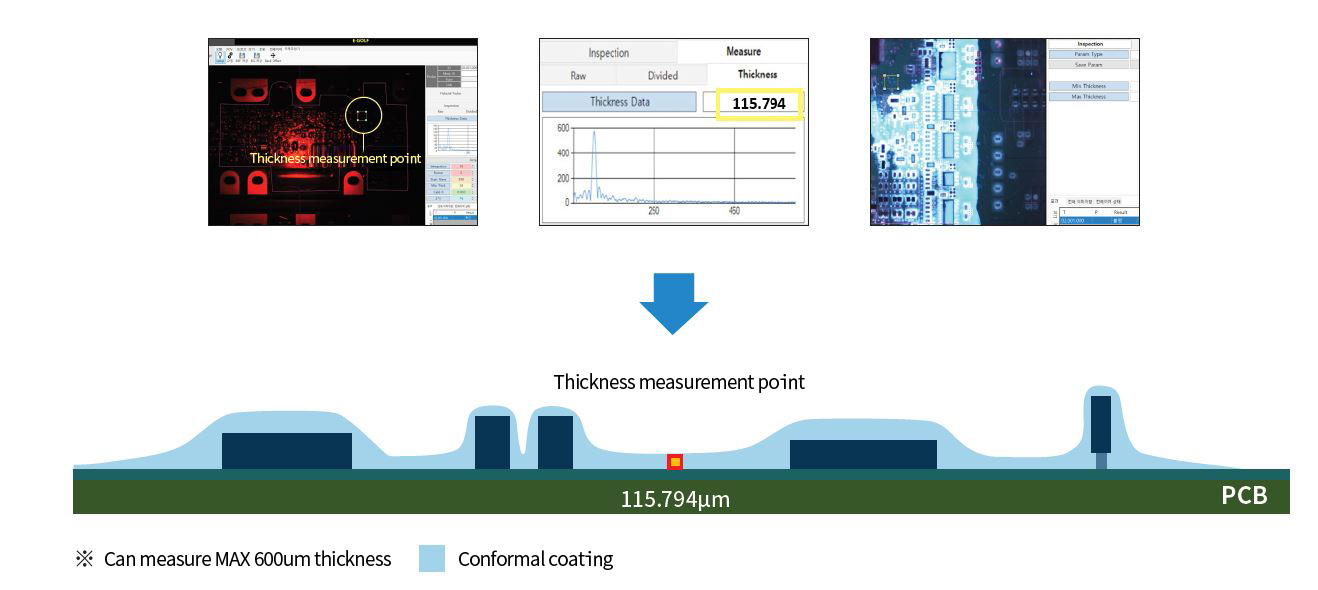

- Stable and precise measurement of thicknesses of coating layers by applying unique algorithm based on OCT technology.
- Accurate data acquisition and excellent reproducibility with measurement of optical phase
- Accurate data acquisition and excellent reproducibility with measurement of optical phase
User UI
- Intuitive UI with maximized convenience
- Simple teaching settings and automatic calibration
- Simple teaching settings and automatic calibration
Process Management System
- Defects are classified/analyzed by type through stored inspection data and measured values into various statistics
- Real-time SPC monitoring, report by period, production status, filtering and sorting function by defect
- Real-time SPC monitoring, report by period, production status, filtering and sorting function by defect
