Roll to Roll

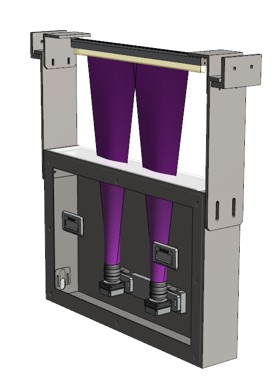

UniScan-P Inline Print Inspection Machine

The device inspects and monitors printing conditions of patterns of films and during MLCC printing processes.

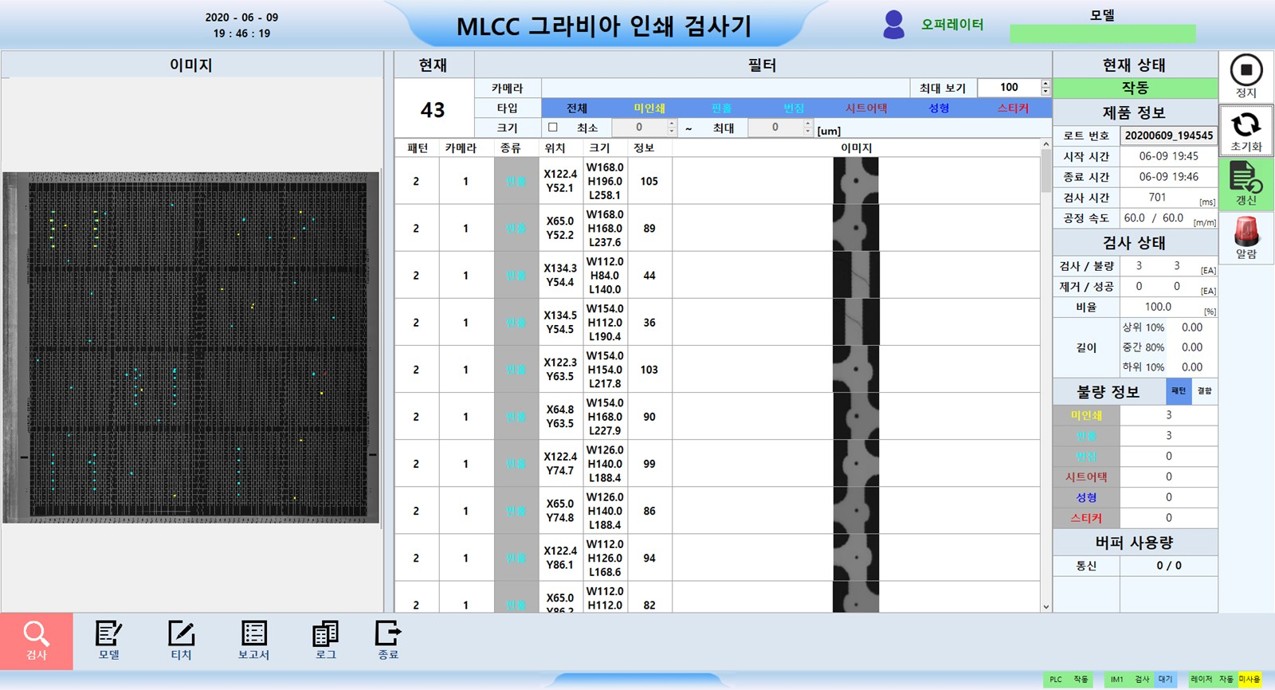

Key functions and inspection items -High-speed inspection equipment that monitors print status in real time and automatically detects defects in a continuous printing process
-Optimizing optical systems, image processing algorithms to detect fine print errors, smudges, misalignment, missing, etc
-Real-time collaboration with production lines to provide immediate quality feedback

Key Features -High-resolution/high-speed line-scan camera for real-time image processing on high-speed lines
-Automatic recognition of pattern criteria and output of bad position coordinates
-AI-based defect classification function applicable
-Real-time interlocking support with PLC, MES, marking devices, etc
-Equipped with a calibration algorithm to correspond to print material deviations
-Provides automatic teaching for quick teaching settings

Product Specifications

CATEGORY	SPECIFICATION	NOTE
Camera	18K Line Scan
Resolution	30 ㎛ / pixel
FOV	480 mm
Light	Top & Bottom LED Bar Light
PLC	Ethernet or DIO

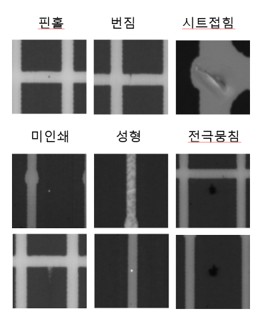

Items	unprinted, printed pinhole, smudging, splashing, etc
Speed	Max 120m/min	Standard base
