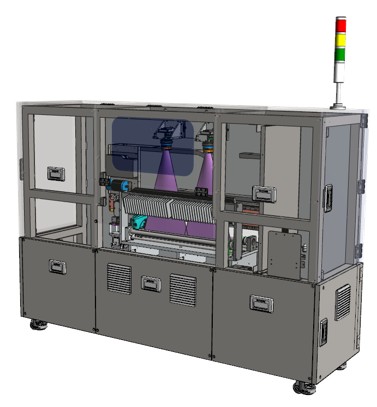

UniScan-ST Film composite inspection machine

Integrated film inspection solution that simultaneously detects surface defects and thickness anomalies

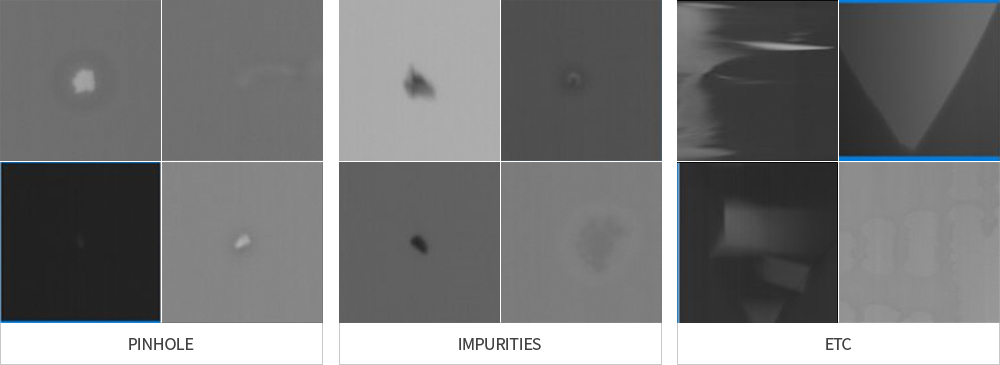

Items for Detection Pinhole, impurities, scratches, stains, etc.

Key Features -Surface defect inspection + contactless thickness measurement integrated configuration
-Line scanning-based high-speed image processing + optical thickness sensor parallel arrangement
-Fine defect (≥30 μm) precision detection with high resolution image analysis
-Save inspection results as rollmaps/statistics and automatically report

Key Features -Integrated in-line vision inspection equipment that simultaneously inspects surface defects such as foreign substances, scratches, stains, etc. and thickness abnormalities in one system in the production line of films, coatings, etc
-Without the need for double installation of inspection equipment in a single process line, one system can perform accurate appearance inspection and real-time precision measurement, simultaneously saving facility space and maximizing quality control efficiency

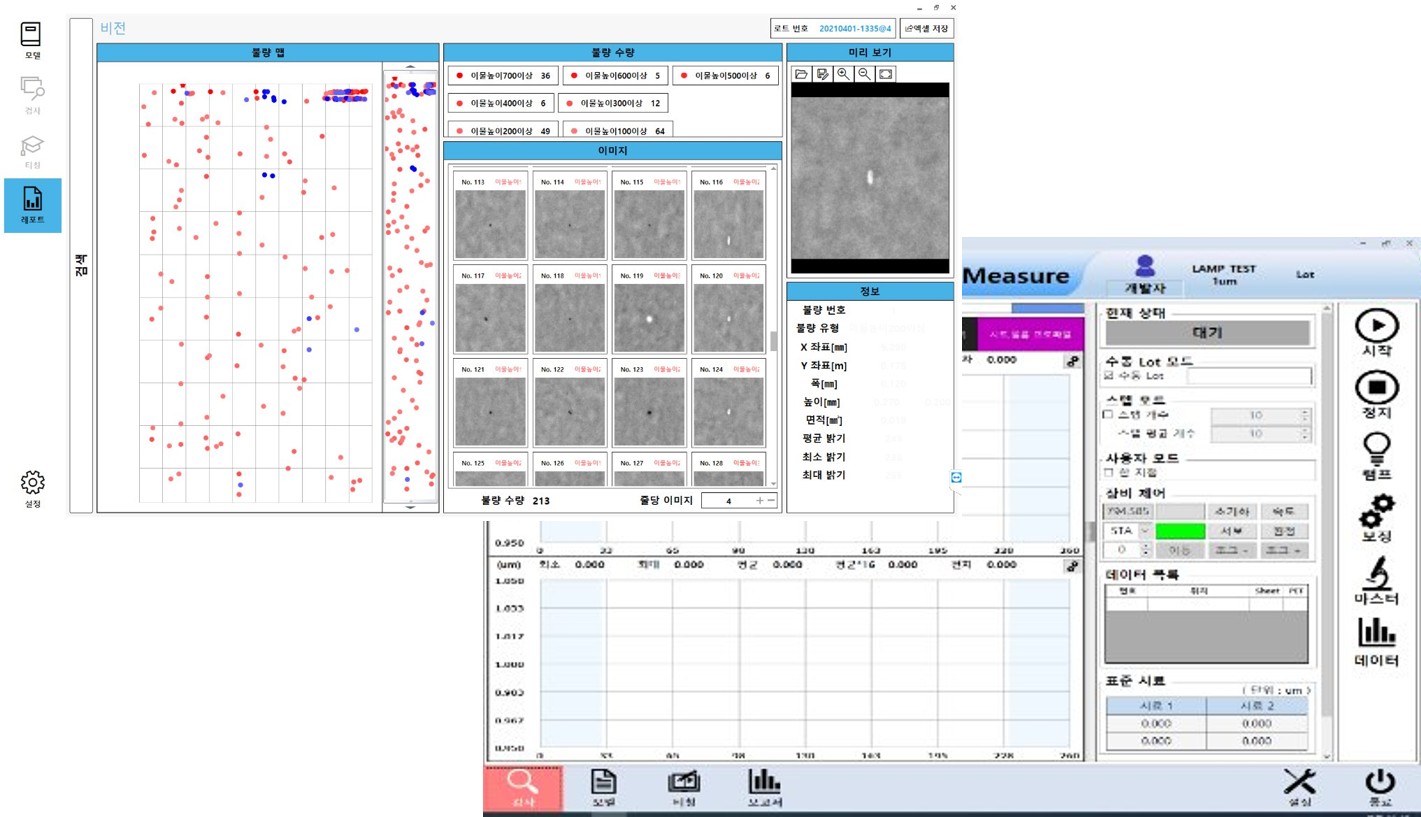

-Teaching and inspection condition setting according to model, inspection and data storage & report, classification and alarm by defect type, statistical function by defect type, etc

Product specifications

Category	Specification	Note
Camera	6K Line Scan	X2
Resolution	42 ㎛ / pixel @ 500mm	Customizable
Light	Top & Bottom LED Bar Light
Items	Uncoated / Pinhole / Contamination, etc
Thickness measurement range	0.5 ∼ 60 um	±1.00%
Wavelength	Visible / NIR
Sampling Rate	Up to 40 times/sec
Light Source Lamp	Tungsten Halogen	6,000 hours
PLC	Ethernet or DIO
Speed	Up to 140m/min	Base
Option	External Encoder / Labeler
