UniScan-SP Pin Hole Inspector

Dedicated inspector for detecting pinholes in coated or opaque materials

Key Feature -Inspection equipment that accurately detects pinhole defects that may occur in various materials such as film, metal foil, laminate, membrane, etc
-A pinhole is a very small perforation defect caused by poor coating, foreign material inclusion, etc., which can have a significant impact on the electrical insulation, wet/weather properties, and mechanical strength of the product, which are essential for high-trust quality control

Key Features -Real-time pinhole detection even during high-speed production
-Application of Transmitted Light-Based Lighting Method

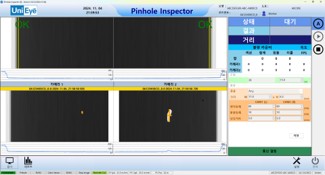

-Automatically analyze the location, size, number, and distribution of inspection results
-Save data in the form of a scan report
-Automatically adjust lighting conditions based on film condition to ensure optimal detection performance
-If a pinhole is detected, it is possible to exclude printing work on the area. (In conjunction with PLC)

Product Specifications

Category	Specification		Note
Camera	2K Line Scan	4K Line Scan
Resolution	120 ㎛ / pixel	60 ㎛ / pixel
Light	Bottom LED Bar Light ( Backlight )
PLC	Ethernet or DIO
Items	Pin-Hole, Stripe
Speed	Max 100m/min		Standard base
