UnilScan-E Edge Position Detector

High-speed edge position detector for precise alignment measurement of film and sheet materials
-Optical edge sensor (transmissive/reflective options)

Key Features -A dedicated sensor system that detects the edge position of continuous materials (film, paper, metal foil, etc.) used in the production process in real time and accurately identifies the alignment
-Based on precision optical sensors and high-speed computational algorithms, the material position can be automatically corrected in conjunction with EPC (Edge Position Control) by detecting left-right bias of the film

Key Features -Optical edge sensor (reflective type)
-Provides high-speed response to film position changes and ±μm-class resolution
-Can cope with both transparent/opaque/partially transparent materials
-Customizable sensor head and controller for installation location and conditions
-Position data output and interworking with external controllers (PLC, motor drivers, etc.)
-Multiple edge detection and centerline position calculation
-Provide a position adjustment mechanism for correction of the measurement position

Product Specifications

Category	Specification	Note
Camera	7.2K Line Scan
Resolution	5 ㎛ / pixel
FOV	36 mm
Light	Top & Bottom LED Bar Light
PLC	Ethernet or DIO

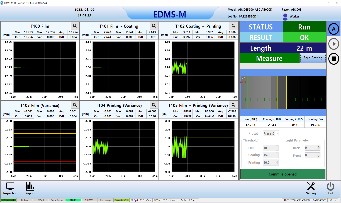

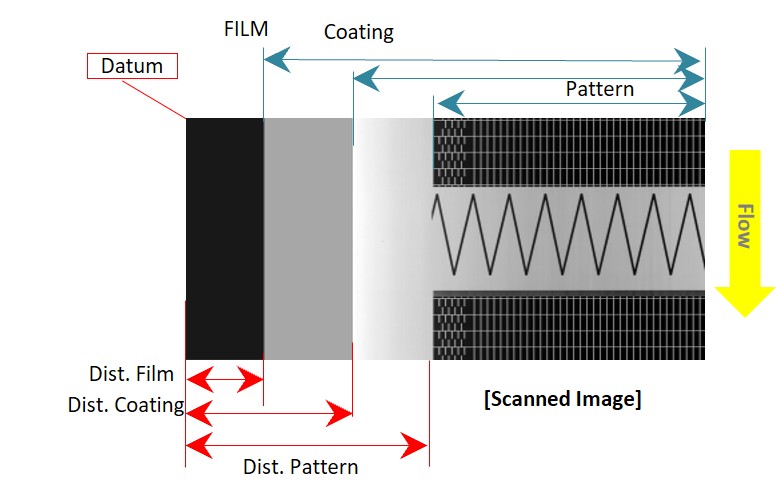

Items	FILM, COATING, PRINTING Measurement of movement
Speed	Max 80m/min	Standard base
