UniScan-TX Offline Thickness Measurement Machine

The thickness of coating layers between transparent materials used in Roll-to-Roll processes is measured using Optical Coherence Tomography (OCT).

Key Feature -A standalone instrumentation facility that measures samples manually or automatically outside the process
-Use for a variety of purposes, including product development, quality assurance (QA/QC), and initial specimen analysis
-Multi-layered fine thin film thickness can be measured for transparent products such as PET, PE, polyimide, glass, etc




Key Feature -Precise measurement after sample positioning (short movement of measurement sensor)
-Transparent/multi-layer material correspondence
-Sub-nanometer to hundreds of μm thickness precision measurements

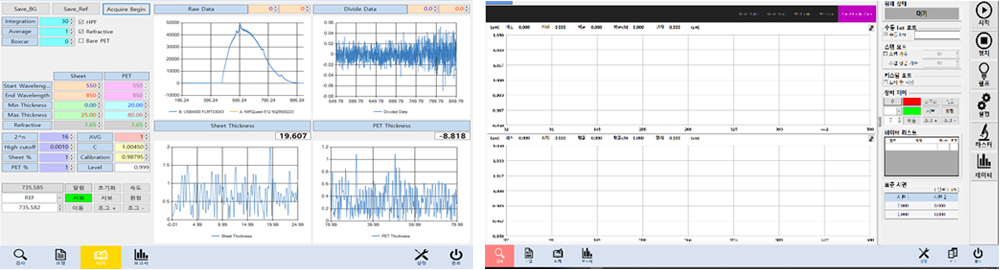

-User-centric, easy UI and automatic data storage
-Optimized for R&D and Quality Management (QC)



Product Specifications


Category

Specification

Note

Thickness Measurement Range

0.5 ∼ 60 um

Accuracy

1.00%

Precision

0.30%

Wavelength

 Visible / NIR

Sampling Rate

Up to 40 times/sec

Working Distance

33 mm In & Out

Light Source Lamp

Tungsten Halogen

 ( 6,000 hours )
