Roll to Roll

FishEye Inspection

Precision inspection of possible FishEye defects on film surfaces

Key Features -A line scan-based, high-resolution offline-only inspector developed to accurately detect ultra-fine FishEye defects of less than 1 μm during the PET film tensile process
-High-precision, high-speed line scanning analysis of micro-concave defects, gloss distortion, stretching deformation, etc. caused by tension imbalance in optical coating layers or functional films

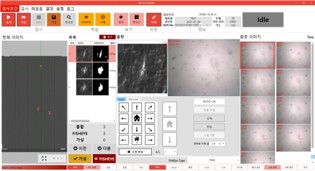

-Provides defect visualization and statistical analysis reports for quality assurance, process improvement, and customer response

Key Features -Sample in film units and inspect fishEye precisely to evaluate the quality of the production process
-Use a dedicated FishEye optical system to detect even fine FishEye defects
-Application of AI-based defect detection function
-Automatically set optimal lighting conditions to match the direction of film formation
-Using a microscope optical system, the shape of the defect can be checked at a high magnification for the location of the defect

Product Specifications

Category	Specification	Note
Camera	12K Line Scan Camera
FOV	43 mm
Resolution	3.4 ㎛/pixel
Light System	High-brightness LED only lighting
Inspection Item	FIshEye
Option	Micro scope Review Camera
