UniScan-PX Offline Printing Pattern Inspector

High-precision offline inspection machine for sample and development print quality inspection

Key Features -Standalone vision inspection equipment suitable for precise inspection of print quality of sheets or small-volume products outside the printing process
-High-resolution camera system to accurately detect misalignment, missing fine patterns, color smudging, broken lines, etc
-Various uses for QA, QC, and R&D purposes

Key Features -High-precision examination of stationary specimen (measurement of alignment in μm)
-In addition to poor print pattern, check pattern printing location, pattern size, etc
-High resolution 2D Vision + lighting optimization combination design
-Automate pattern recognition based on inspection target shape and background
-Built-in quantitative analysis based on comparison templates
-Automatically generate inspection results images and statistics reports

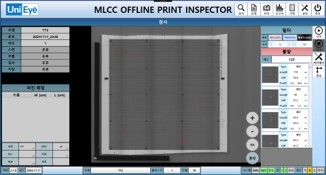

-Provides intuitive UI and analysis tools for field engineers

Product Specifications

Category	Specification	Note
Camera	12k Line Scan
Resolution	5 ㎛ / pixel
Light	Top & Bottom LED Light
Interface	Single facility
Items	Defect printing, margin measurement, deformation measurement
Speed	4min / Sheet	440mm Base
